Askar 131F 0.74× Reducer

Askar 131F 0.74× Reducer

Askar 銳星光學
Askar & Sharpstar 銳星光學

AK-51062
新品
預訂

HK$ 2280


訂金 HK$ 228


+ -

部分數量需訂貨,急用請先查貨期再付款。
Some quantities require ordering. Check lead time before payment if urgent.
圖片僅作供參考,並不代表產品實物及所包括配件。
Pictures shown are for illustration purpose only and may not be an exact representation of the product and accessories included.
  • 詳細內容

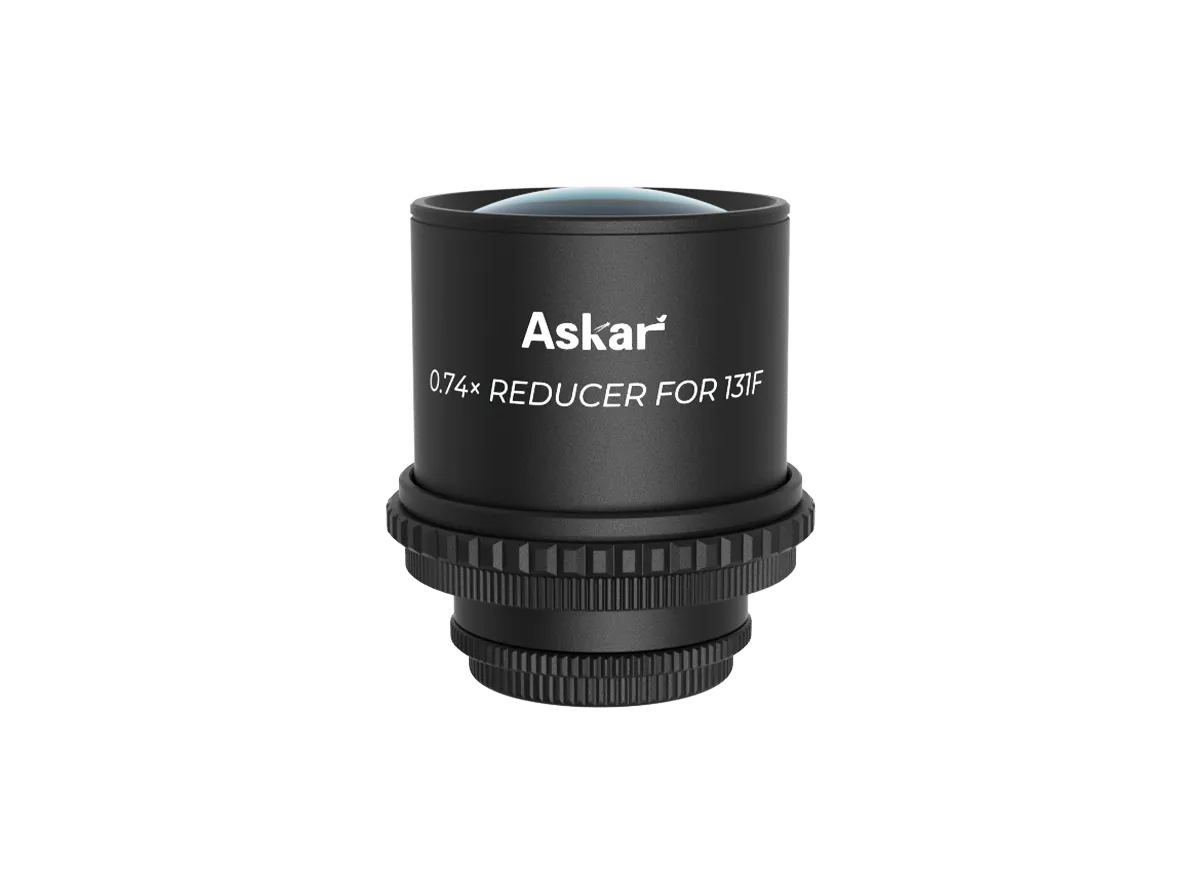

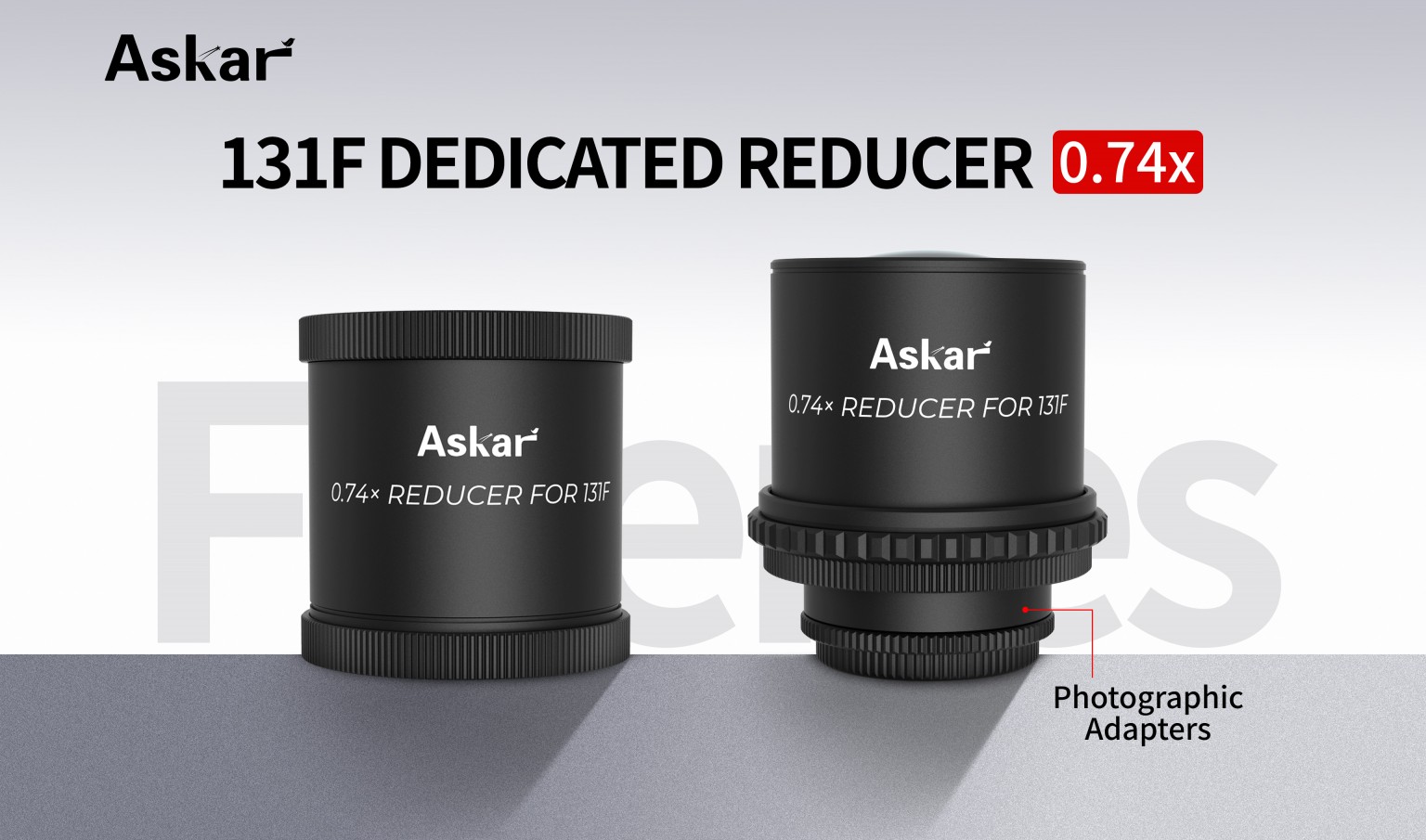

This 0.74× Reducer is the ideal companion for the Askar 131F telescope, reducing the focal ratio from f/7.5 to f/5.6. This dramatically shortens exposure times, allowing you to effortlessly capture wide-field nebulae,dense star clusters, as well as faint or fast-moving celestial objects.

It also incorporates field-flattening correction capabilities,effectively eliminating field curvature to ensure sharp, clear stars from the center to the edges of the frame.

Featuring a triplet optical lens design, this reducer supports a 44mm full-frame image circle. It has a standard back focus of 55mm (measured from the M48 thread), with M72×1 threads on both ends.The package includes an extension tube and comes with both M54×0.75 and M48×0.75 adapter rings that connect directly to the reducer for easy installation.The rear adapter ring features a built-in M48×0.75 thread, enabling direct attachment of 2-inch filters.

Constructed using CNC machining, the reducer is equipped with metal thread caps on both ends. These caps protect the optics and offer convenient dust-proof storage, reflecting the product's professional quality.



Specifications

Parameter
 (After attaching)131F Focal length 733.6mm
 (After attaching)131F Focal ratio f/5.6
Lens Number Triplet design
Back Focus 55mm(from the base of M48 male thread)
Weight 0.56kg
Rear-end thread type M72*1



Size Diagram

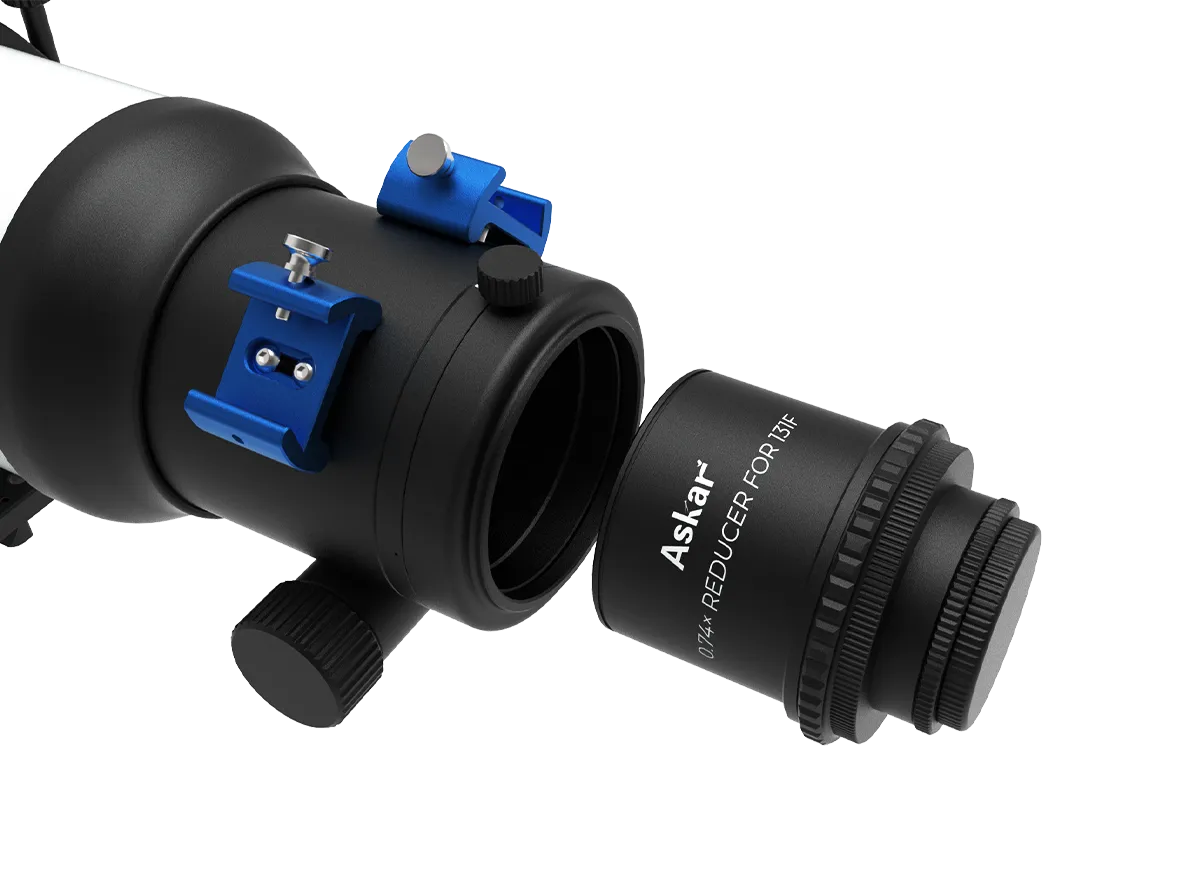

Installation
Optical Path Diagram
Spot Diagram
