Daystar Quark Chromosphere Model is the first Hydrogen Alpha "Eyepiece". This new, All-In-One design marries high quality components of a telecentric barlow, adapters, snouts and Daystar hydrogen alpha filter into one single assembly. Through design efficiency and optimization, users can now enjoy the known high-quality optics of Daystar Filters at an affordable price.

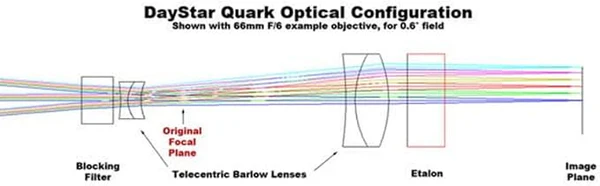

For use on refractors of F/4 to F/9, the user needn't worry about configurations. Just insert in your diagonal, add an eyepiece and view. The QUARK contains a custom Daystar Instruments 4.2X telecentric barlow lens fully optimized in coatings and optical design specifically for the Hydrogen Alpha wavelength. This highly specialized telecentric lens offers superior field flatness. Exact filter bandpass will vary based on final telescope application, so QUARK assemblies are qualified to show either prominence or surface (chromosphere).  No specific FWHM bandpass is designated. Now observers can buy a filter based on their desired observing goals instead of their budget. Choose prominences and surface (Chromosphere) detail. Both are available for the same low price! The fully optimized design eliminates the need for any adapters. It's all combined in one lightweight eyepiece sized device. The new, compact design configuration eliminates unnecessary components, weight and associated costs. We even reduced power consumption, so the Quark can now operate all day off a small, palm-sized optional battery pack. Baffles have been added to increase contrast and AR coatings are optimized for the 656nm wavelength.

• The QUARK assembly is a product of Daystar Instruments, using Daystar Filters' Fabry Perot etalon technology.

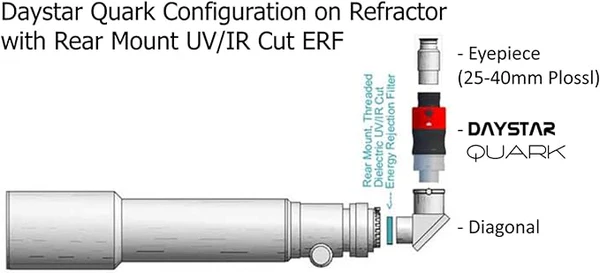

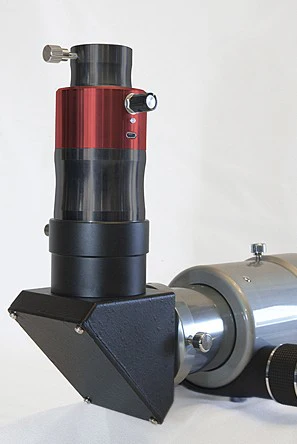

• 1.25" or 2.0" combo eyepiece snouts with safety indent slot directly into your diagonal
• Standard 1.25 eyepiece drawtube output with optional 2" and SCT accessories available
• Brass compression ring to protect eyepiece. Uses USB power, 5v 1.5amp Includes 90-240VAC wall adapter with international plug adapters
• Tuning knob allows wing shifting +/- 0.5Å with detents at every 0.1Å LED indicator for power, warming, ready, fault
• Optional 8-hour battery pack available. Integrated, fully baffled 2 element telecentric 4.2X barlow optimized for 656nm
• Integrated 12mm blocking filter 21mm clear filter aperture
• Best performance with F/4 - F/8 refractors
• Full disk viewing possible on refractors up to ~450mm focal length refractors
• No aperture limitations. May be used on larger refractors for higher magnification views
• Ships in convenient Twist-Case for safe, dust-free storage
• Not suited for off-axis application
• 5 year warranty

ADDITIONAL PRODUCT INFORMATION:
SKU: DSZ4C
Housing: Quark
Wavelength: Hydrogen Alpha (6562.8Å)
Bandwidth: N/A//Uniformity: SE (Standard Edition)
