Why AM3N?
AM3N vs AM3
Do you face the same issue?
Streamlined Setup, Enhanced
Mount Efficiency
Ditch the clutter— the AM3N,
paired with the ZWO AIR Series camera and ZWO EAF PRO, eliminates the need for
complicated adapters and messy cabling.
With just two power cables
(connecting the AM Series mount and ASIAIR), you can achieve a clean, efficient
setup and dive straight into deep-sky astrophotography — faster and easier than
ever.
Strain Wave Gear for
Precision Control
ZWO developed the special
strain wave gear based on the actual needs for astrophotography. The strain
wave gear system comes with very low periodic errors, smooth gearing, and high
torque.
The mount’s internal
structure is optimized with a strain wave gear reducer and synchronous belt,
delivering precise control and an impressive 300:1 reduction ratio.
Each mount is tested and
shipped with an individual periodic error
(PE) curve report.
ZWO measures each mount and
equips it with an exclusive PE curve before it leaves our factory.
The X-axis represents the
drive angle, and the Y-axis represents the periodic error.
The periodic error is
consistently controlled within ±15 arcseconds.
Integrated Type-C and DC
Power Ports
The upgraded AM3N weighs just
4.1 kg (9.04 lbs), with a newly optimized body design for better portability
and cable management.

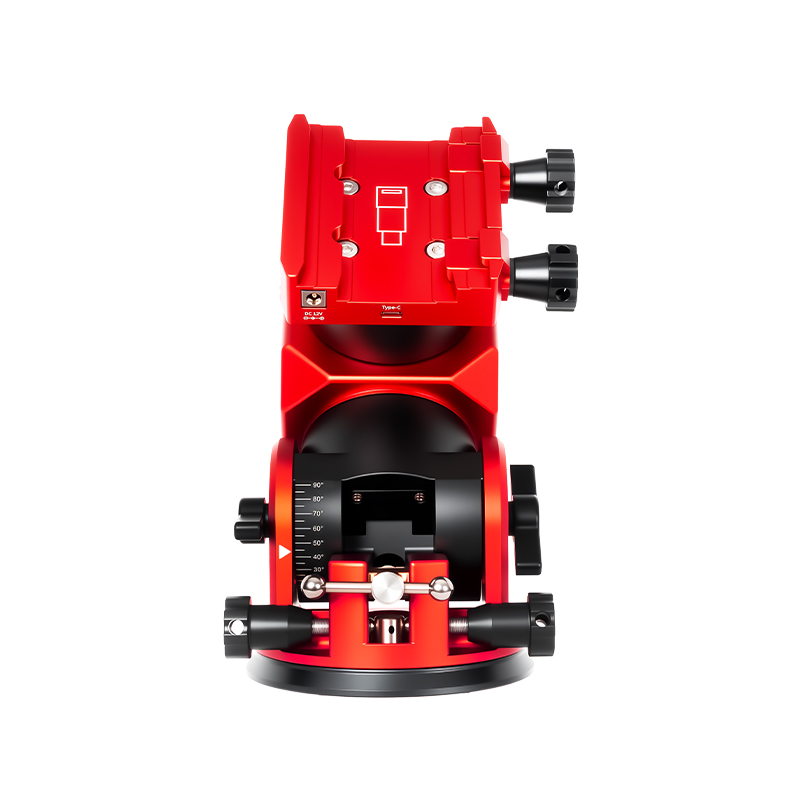

The dovetail saddle now
includes both a Type-C and 12V DC output port, helping eliminate cable clutter
and reducing the risk of tangling — no more cable mess.
Additionally, it includes a
magnetic hex wrench that attaches securely to the mount body, ensuring
convenient access and storage.
Powerful Payload Capacity: 8
–13 kg
It can support up to double
its own weight 8 kg (17.64 lbs) without counterweights,and over triple its
weight 13 kg (28.66 lbs) when used with counterweights.
This payload capacity easily
accommodates a wide range of telescopes, providing a solid and reliable
foundation for your observing and imaging needs.
Based on internal testing:
1. Maximum load without the
counterweight: 8 kg (17.64 lbs) (maximum output torque: 16N · m);
2. Supported counterweight: ≤
5 kg (11.02 lbs). Maximum load capacity with the counterweight: 13 kg (28.66
lbs).
The counterweight should be
secured on a counterweight bar of no more than 25 cm (9.84 in) in length.
Equatorial Mode / Altazimuth
Mode
Can be switched via SkyAtlas
App or Hand Controller.
Status Light Indicator
All-round 0°-90° Altitude
Scale
The AM3N features a versatile
altitude adjustment design ranging from 0° to 90°, allowing for unrestricted
use across both low and high latitude regions.
Gear 1: Rotate the altitude
gear tension knob to achieve a scale between 0 and 60.
Gear 2: Loosen M6 hex wrench
and then adjust the altitude gear fine adjustment knob to achieve a scale
between 30 and 90.
Evolved Portable Control
Wi-Fi & Bluetooth
Connectivity
The AM3N supports Bluetooth
control, allowing you to operate the mount directly from your smartphone — no
Hand Controller required.
Ideal for travel and field
use, just bring your phone and you're ready to observe or image.
Easily Controlled with Mobile
Apps
App offers an onscreen
joystick, including Tonight’s Target, GOTO, Live Preview and so many great
functions can all be achieved with your phones.
There is no need to connect
to a computer—the mount and Hand Controller connect via Wi-Fi.
The mount is compatible with
ASCOM, INDI, ASIAIR, and other platforms.
Seamless ASIAIR Integration
ASIAIR can connect to the
AM3N wirelessly or via cable, offering full control at your fingertips.
Enjoy the ultimate
astrophotography experience with the ZWO Ecosystem, where all your gear works
together—flawlessly.
