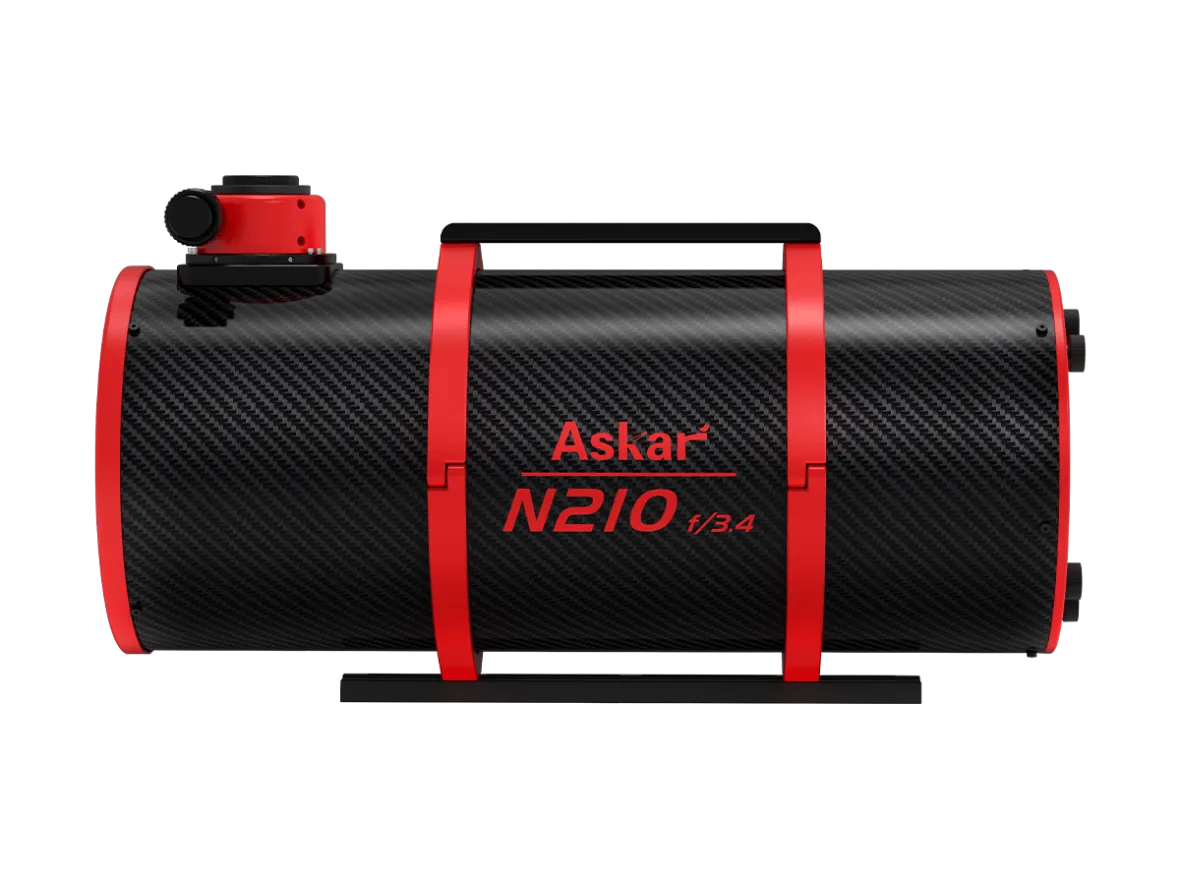

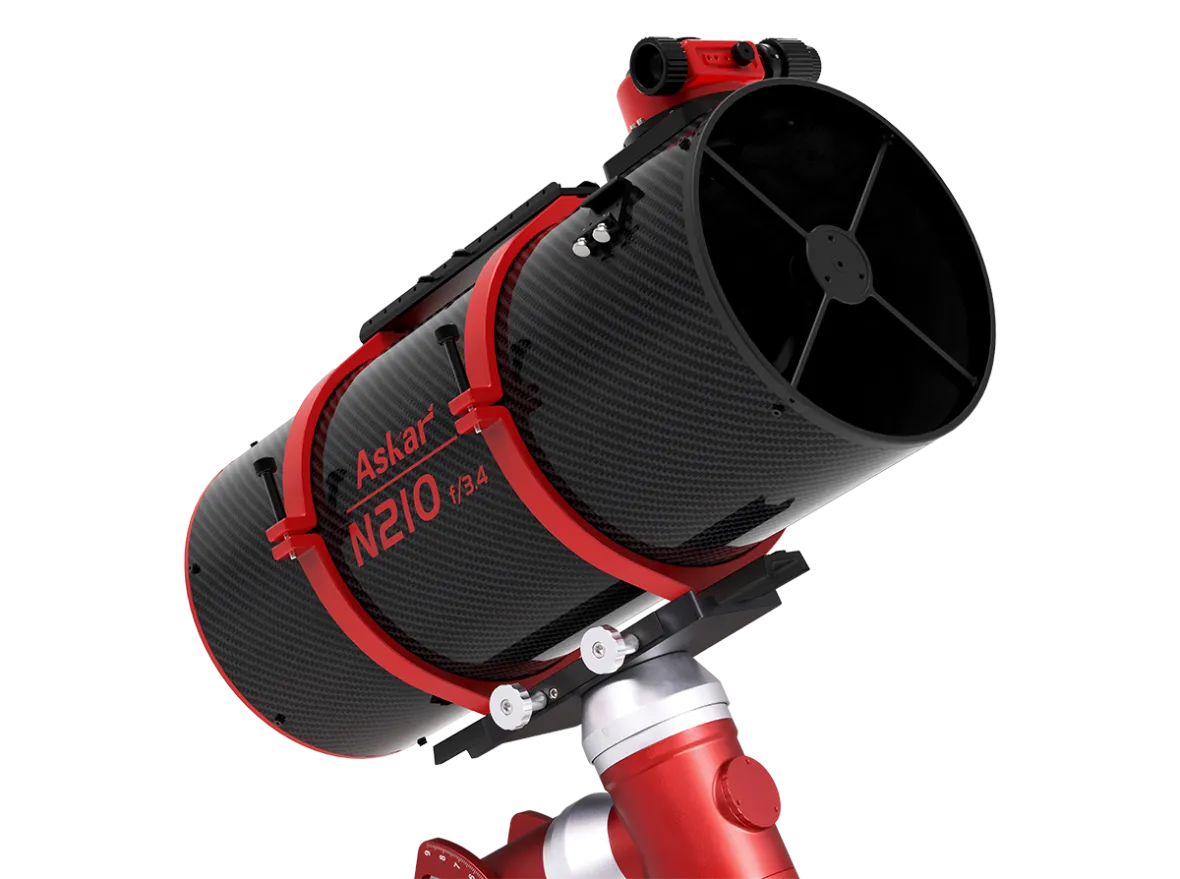

Askar N210 Reflector

Askar N210 Reflector

Askar
Askar & Sharpstar

AK-11066
New
In Stock

HK$ 9280


+ -
圖片僅作供參考,並不代表產品實物及所包括配件。
Pictures shown are for illustration purpose only and may not be an exact representation of the product and accessories included.
  • Description

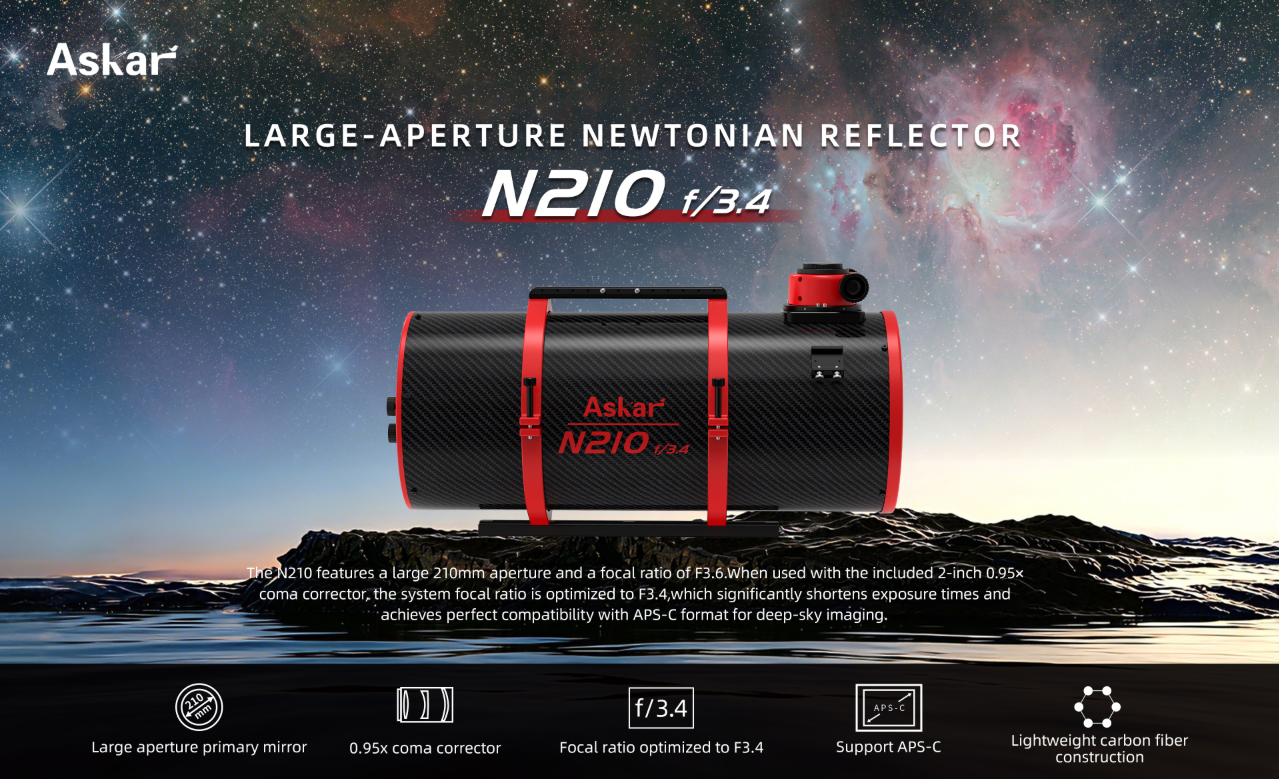

Askar N210 210mm F3.4 Newtonian Reflector Telescope with 0.95x Triplet Corrector

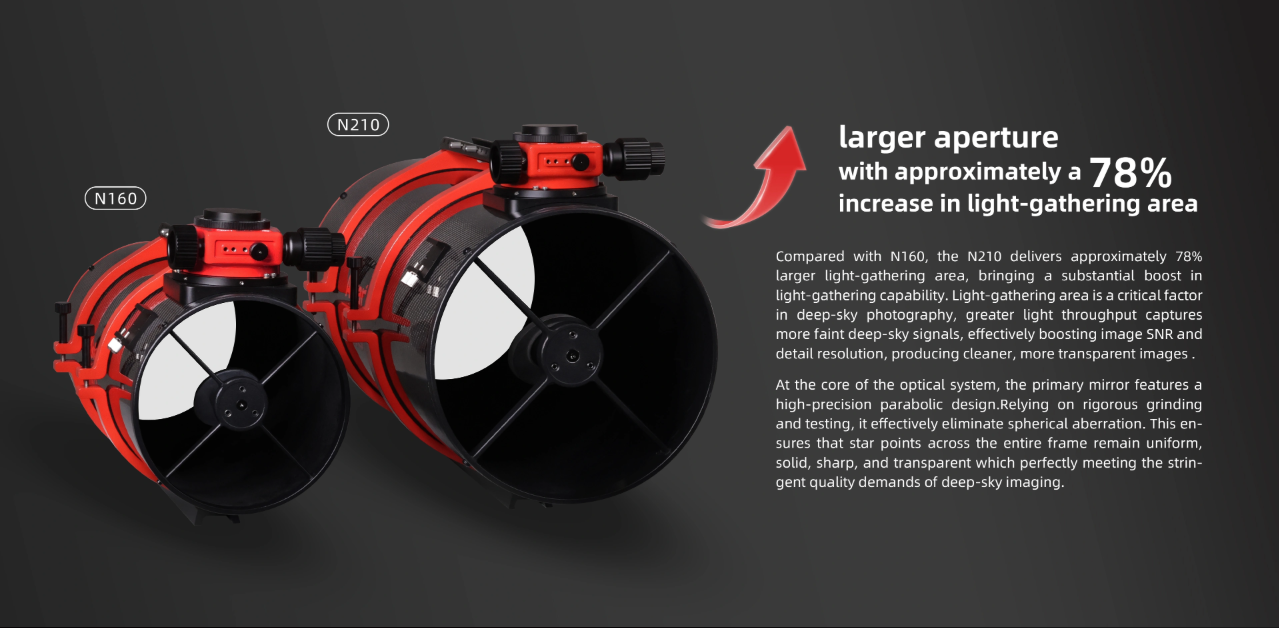

Following the Askar N160, Askar expands its fast Newtonian product line with the larger-aperture Askar N210. This new model boosts the clear aperture to 210 mm, retaining the precision craftsmanship and solid handling of the N160 while significantly enhancing light-gathering capability and optical resolving power. Specifically tailored for deep-sky astrophotographers requiring high-contrast imaging performance, the N210 serves as a powerful, cost-effective upgrade to large-aperture fast reflector systems.

(Solar Warning: Solar observation requires a dedicated, certified solar filter mounted securely on the front of the telescope. Never point the telescope directly at the Sun without an approved solar filter attached.)

【Key Features & Technical Highlights】

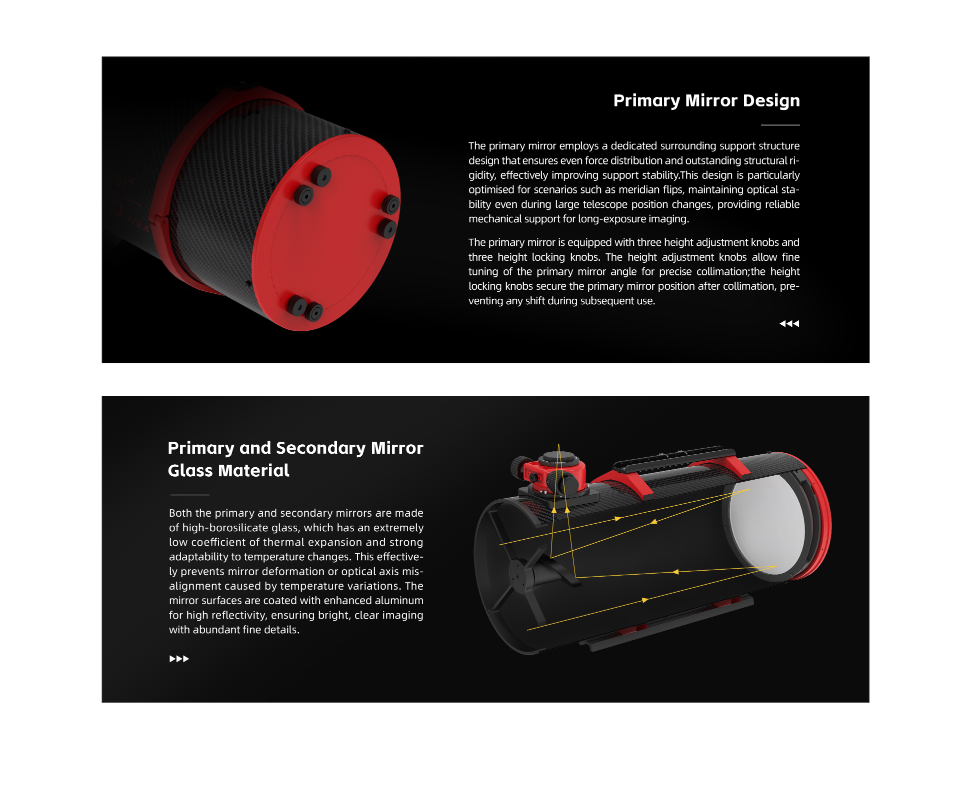

  • 210 mm Parabolic Primary Mirror: Offers massive light-gathering ability and a fine optical resolution of 0.55 arcseconds to capture faint deep-sky structures with minimal exposure time.

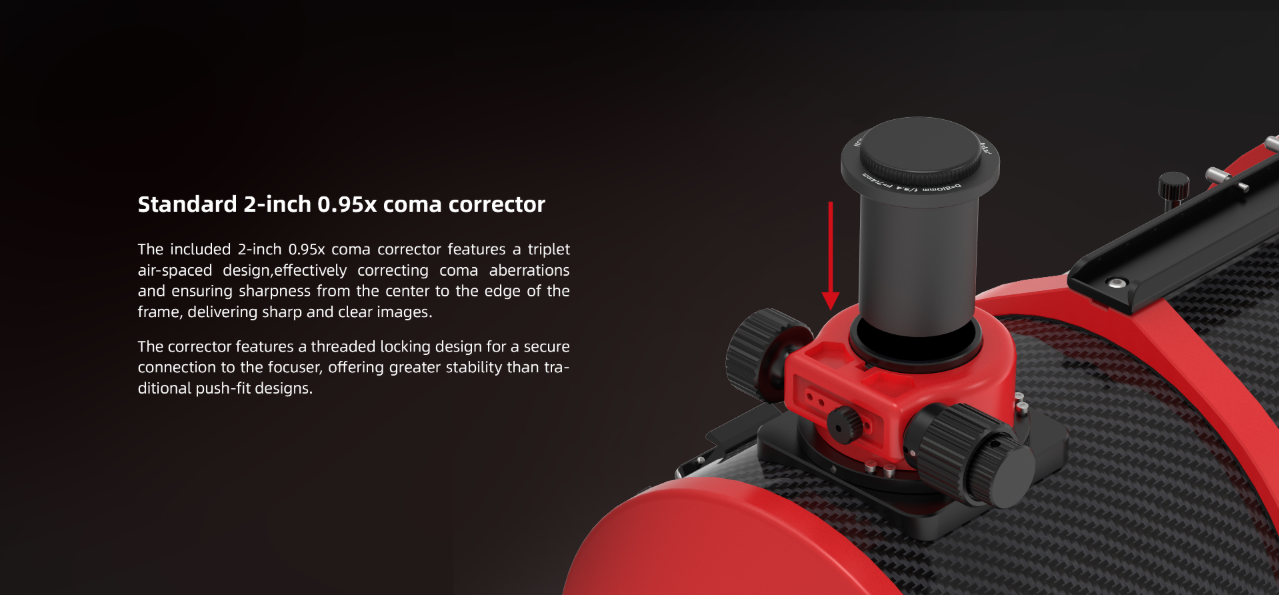

  • Ultra-Fast F/3.4 Speed (with 0.95x Triplet Corrector): Ships with a dedicated 0.95x triplet MPCC corrector that reduces focal length to 714 mm at F/3.4, yielding a corrected image circle for APS-C sensors (28 mm).

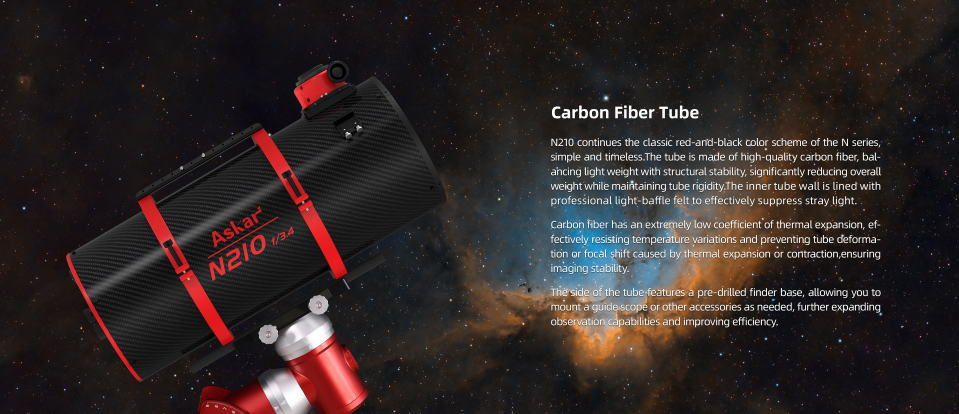

  • Carbon Fiber Tube Construction: Machined with a lightweight carbon fiber tube (OTA weight 7.9 kg), delivering superior thermal stability to minimize focus shift during long exposure sessions.

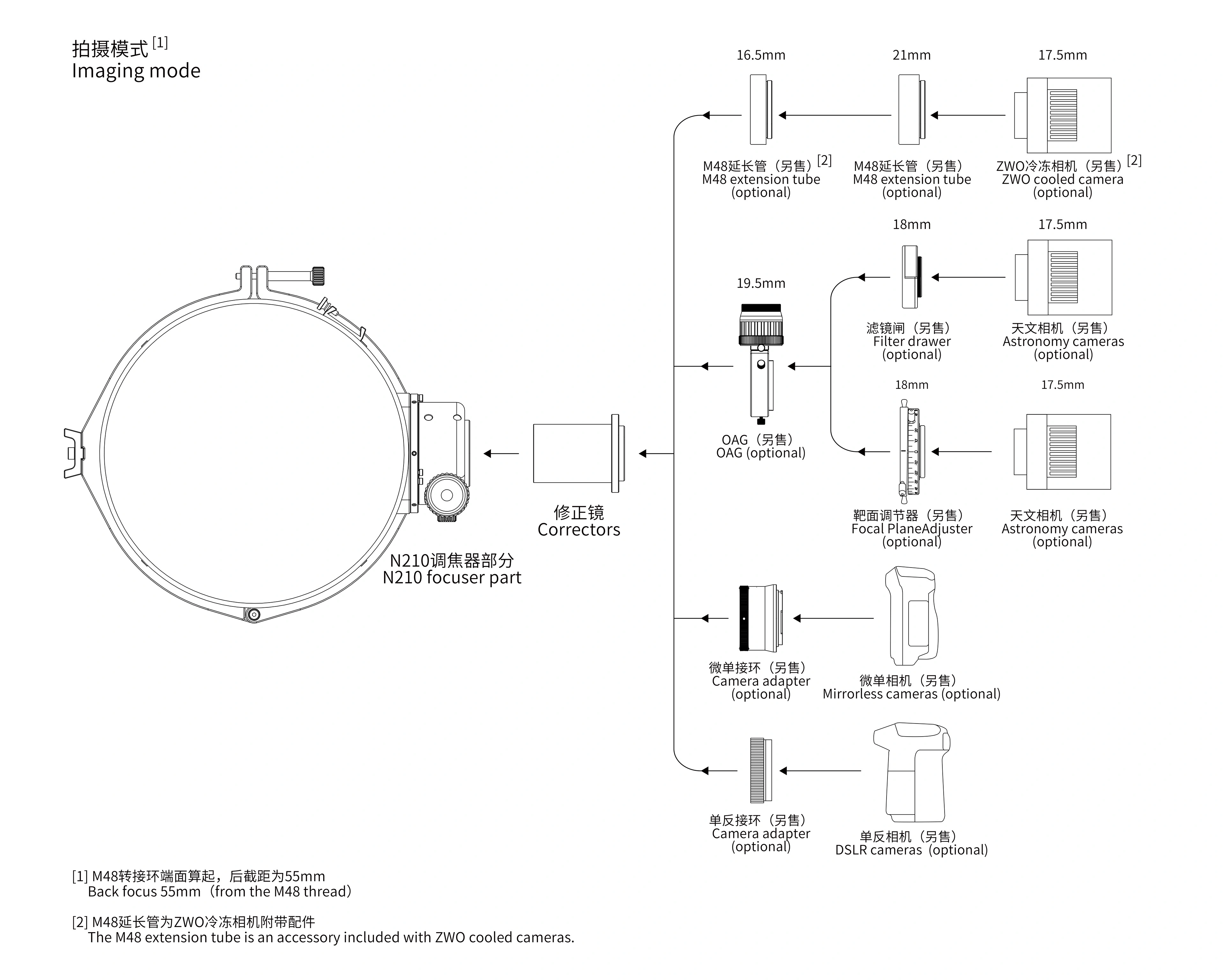

  • Standard 55 mm Back-Focus: Features an M48x0.75 rear thread interface providing standard 55 mm back-focus spacing for simple camera train integration.

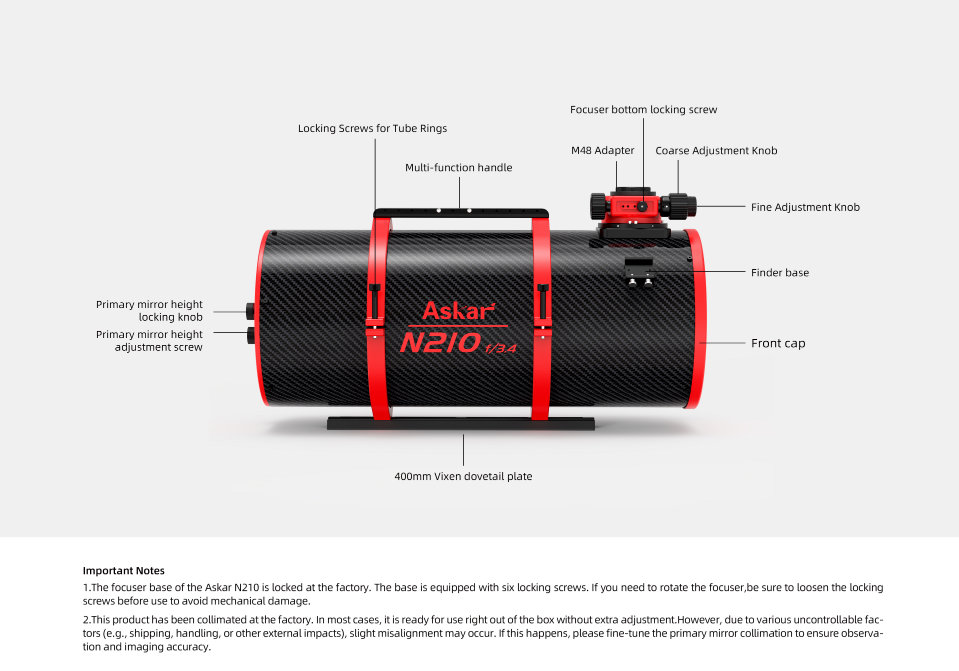

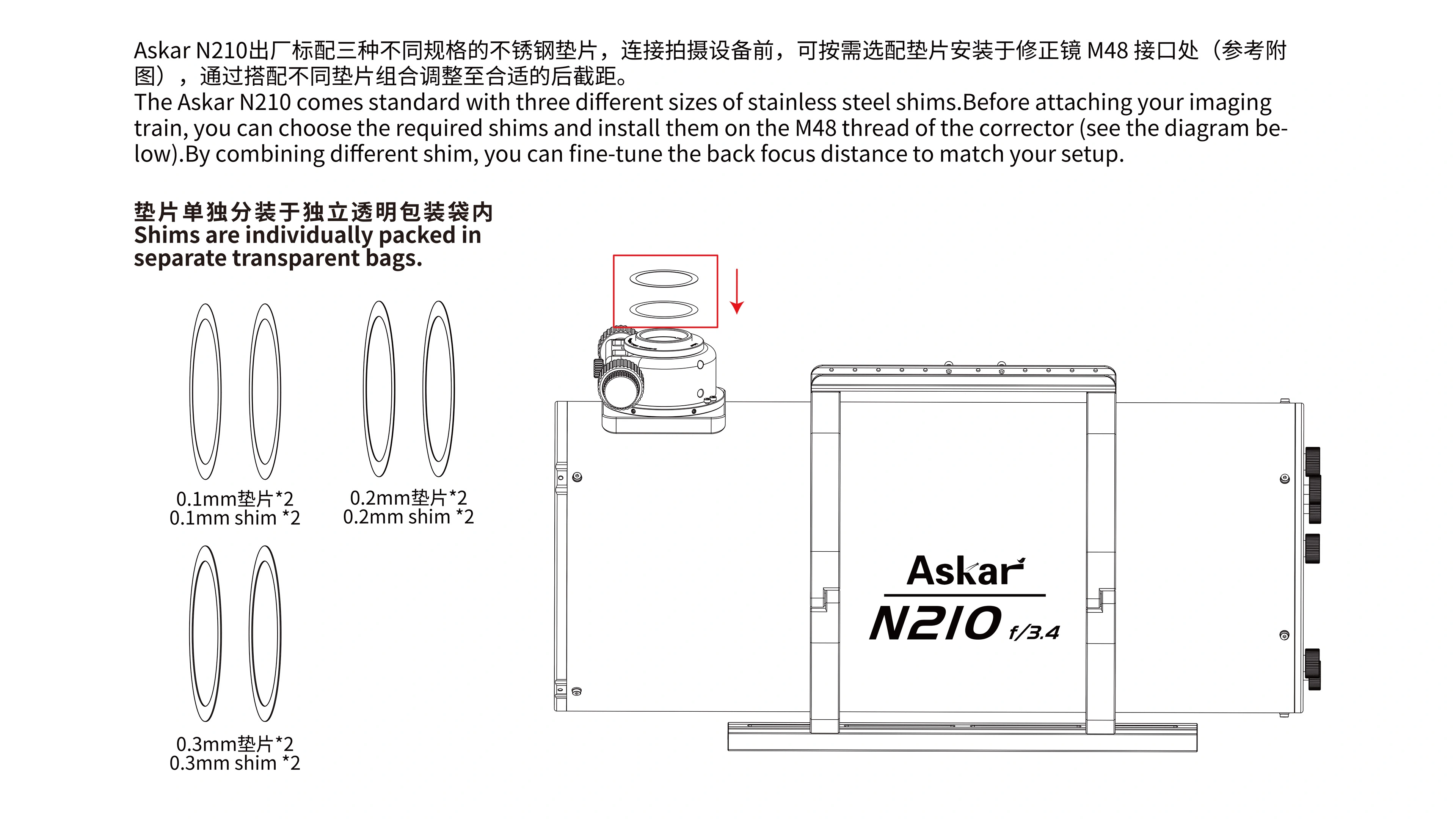

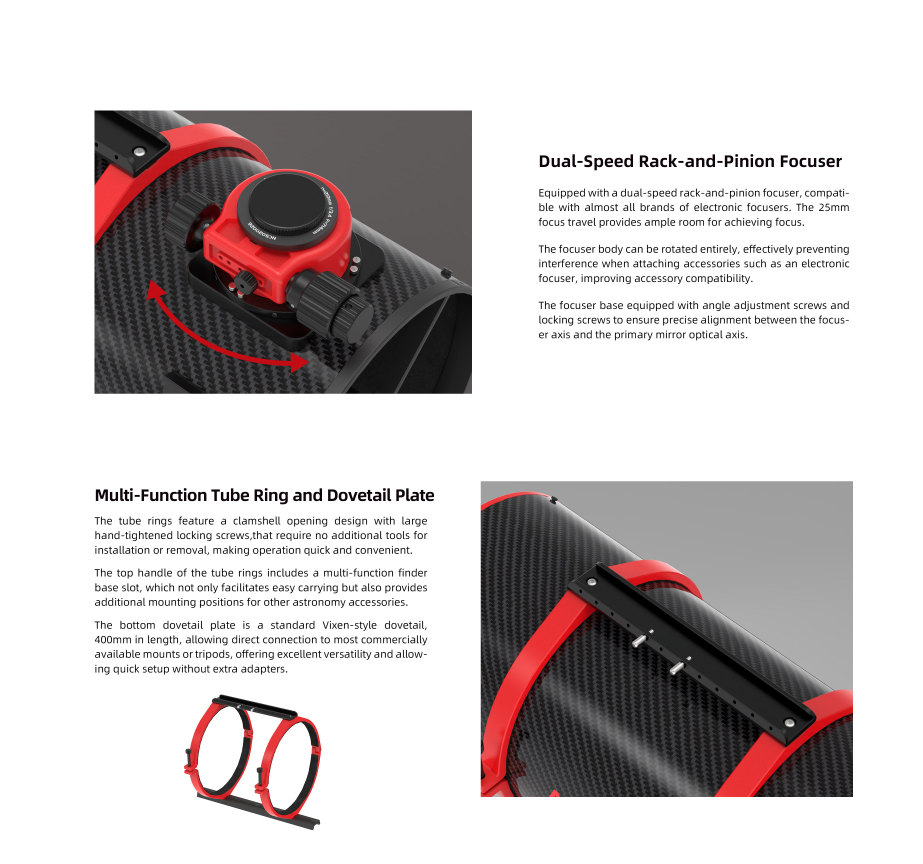

  • Comprehensive Accessory Package: Includes a 400 mm dovetail bar, multifunctional carrying handle, tube rings, and precision shim sets (0.1mm, 0.2mm, 0.3mm) for exact back-focus fine-tuning.

Specifications

Parameter Details
Product Name Askar N210 Newtonian Reflector Telescope

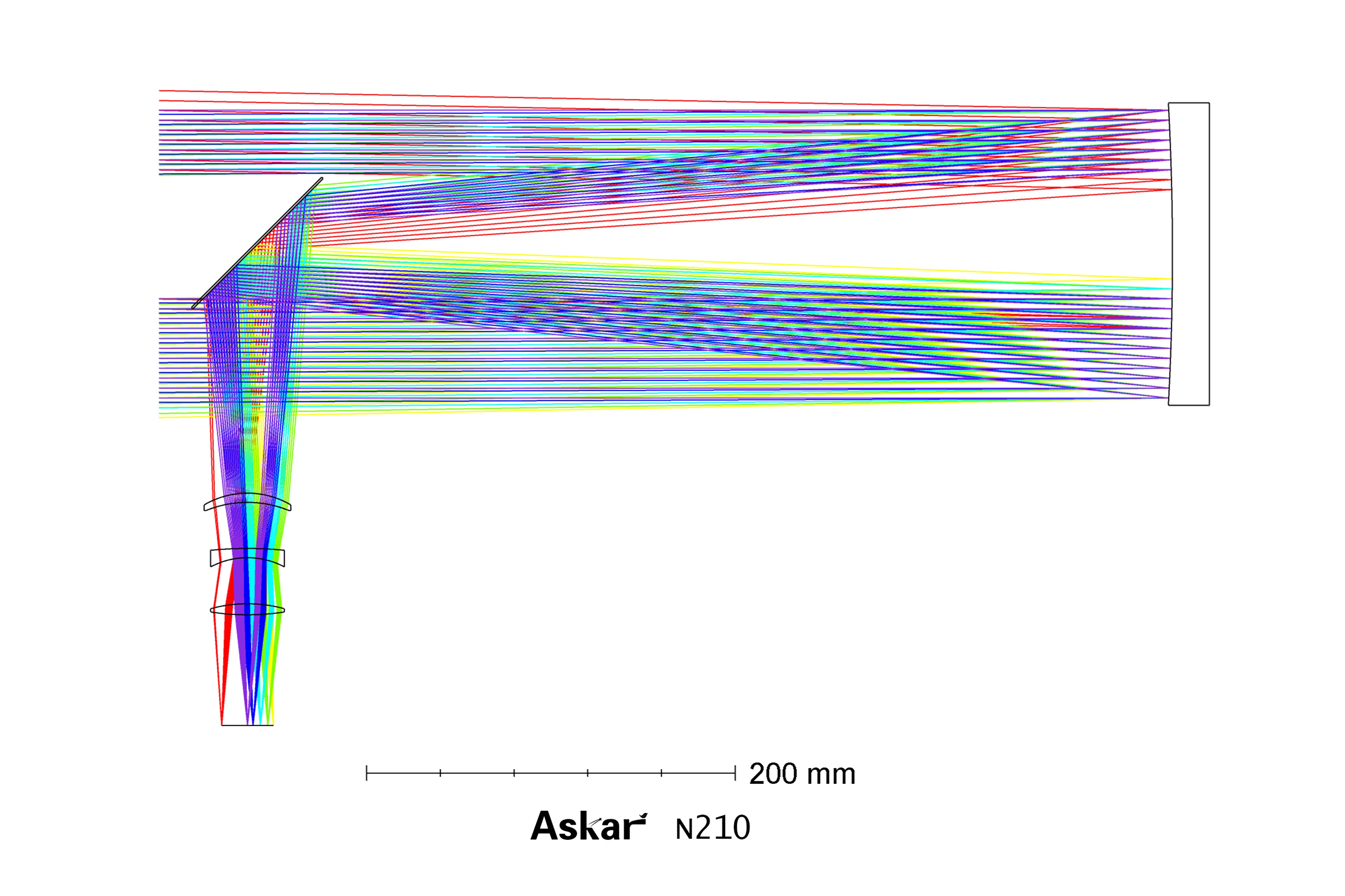

Optical Design Parabolic Newtonian Reflector
Clear Aperture 210 mm
Focal Length 756 mm (Native) / 714 mm (With 0.95x Corrector)
Focal Ratio F/3.6 (Native) / F/3.4 (With 0.95x Corrector)
Corrector Type 0.95x Triplet MPCC Reduction Corrector
Image Format / Resolution APS-C (28 mm image circle) / 0.55"

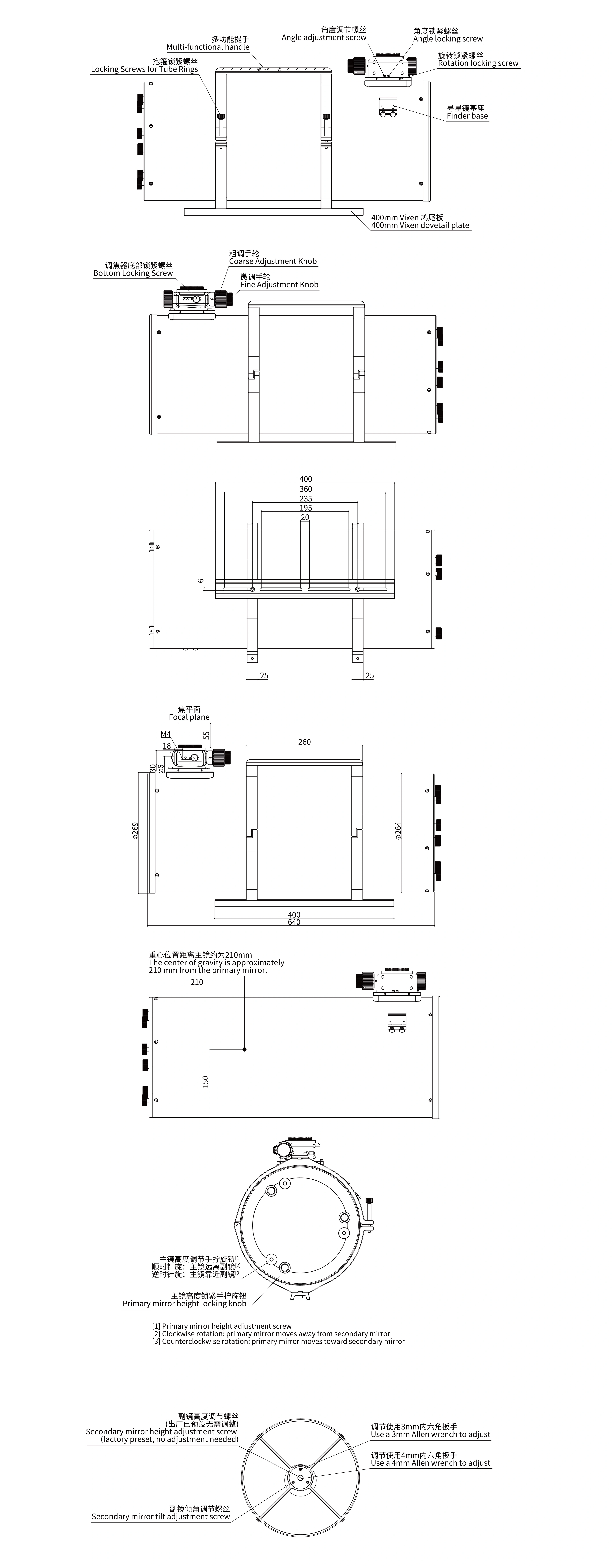

Tube Material & Dimensions Carbon Fiber / 264 mm Outer Diameter / 640 mm Total Length

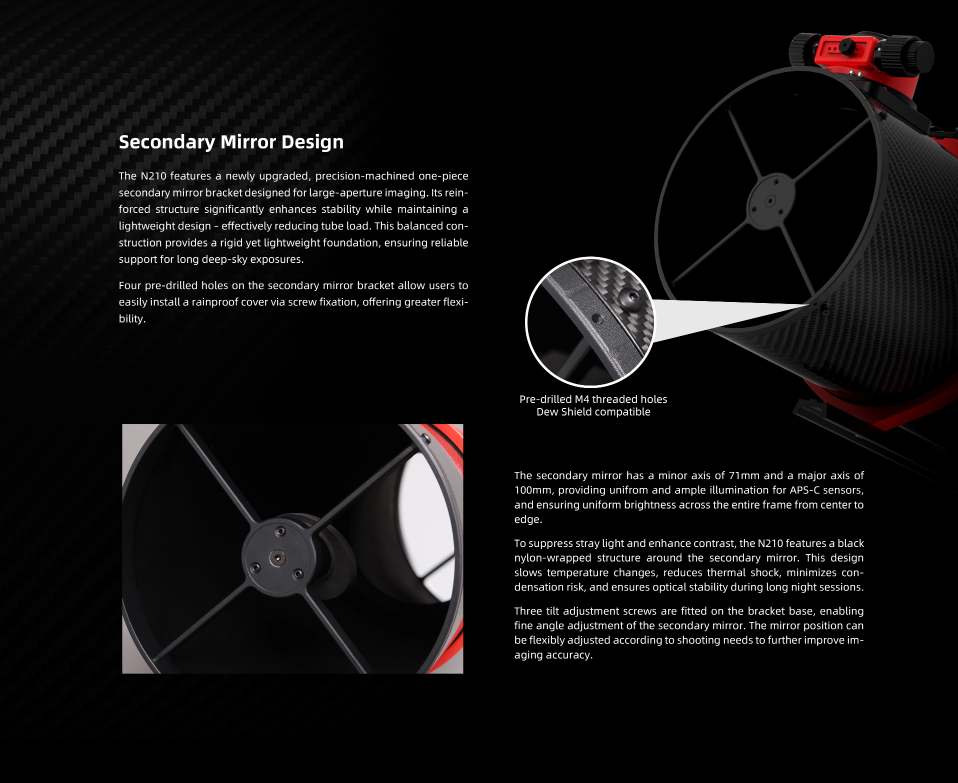

Secondary Mirror Minor Axis 71 mm
Back-Focus & Rear Thread 55 mm (from M48x0.75 thread)
Weights OTA: 7.9 kg / Gross: 9.8 kg (with rings, handle, dovetail & corrector)
Corrector Weight 0.22 kg
Standard Package Items Askar N210 OTA, Tube Rings, 400mm Dovetail Plate, Multifunction Handle, 0.95x MPCC Corrector, M58 to M48 Adapter, Precision Shims (0.1mm x2, 0.2mm x2, 0.3mm x2), Manual
