Description
General
Optical Coatings:
Fully Multi-Coated
Weight:
2.3 lbs (1.47 kg)
Compression Factor:
.7x
Lens Elements:
4-Element
Optimal Back Focus:
146mm (5.75")

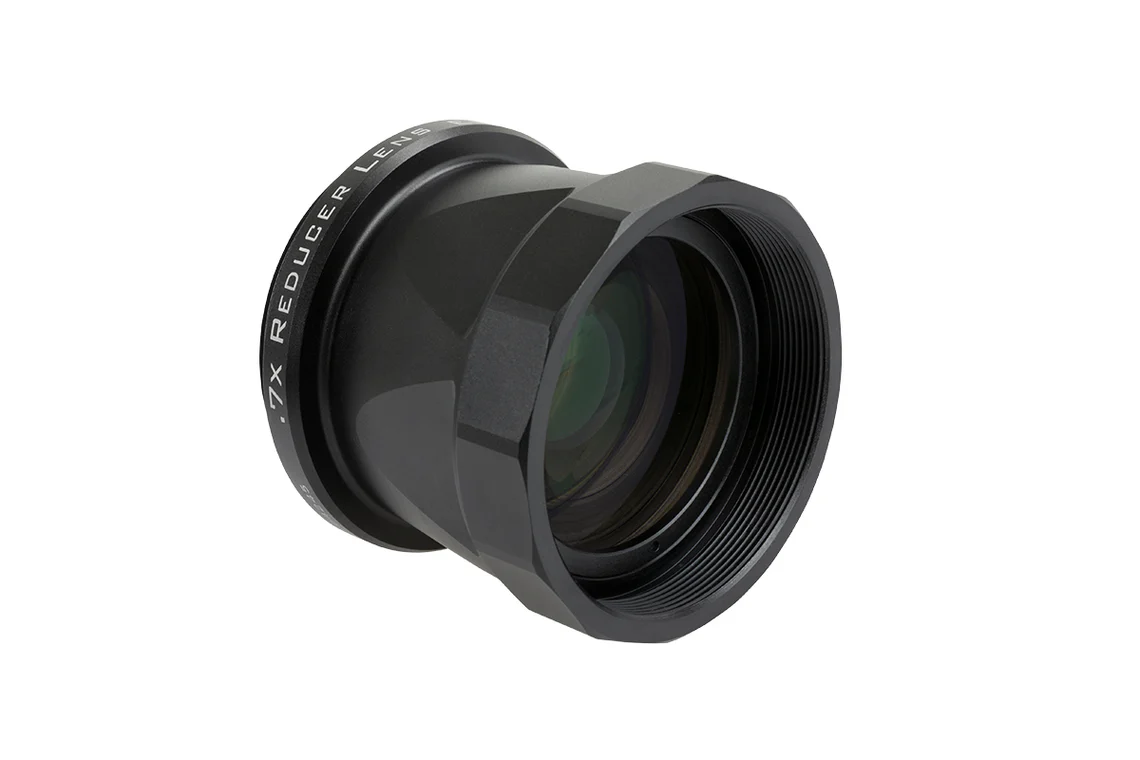

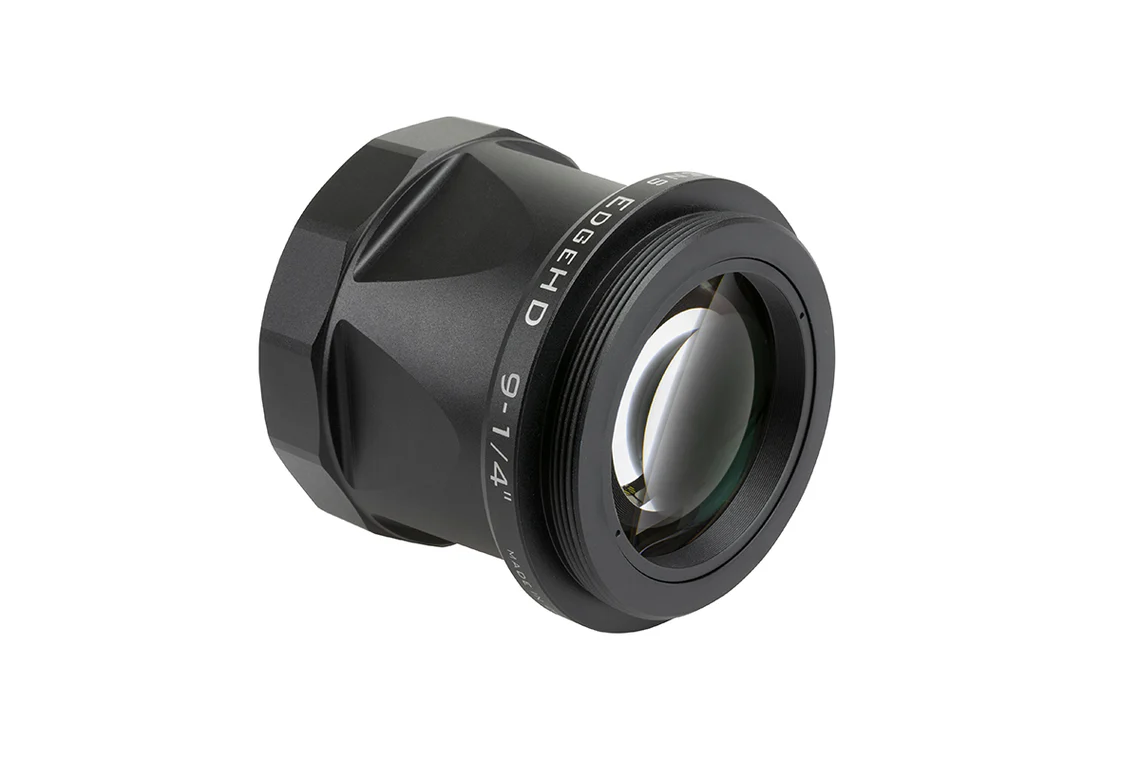

The EdgeHD .7x Focal Reducer Lens makes your EdgeHD 9.25" one full F-Stop faster than f/10, reducing your exposure time by half to capture the same brightness of object
4-element lens design
Maintains similar flat-field performance as native EdgeHD optical design
Increases field of view by 43% to better capture wide field images
Threads directly onto the 3.25" threads of the EdgeHD which reduces mechanical vignetting and allows for use with larger (full frame) sensors and Off-Axis Guiders
Maintains the identical back focus when used at f/10 and provides generous back focus to accommodate additional accessories and wide variety of cameras
Allows use of existing EdgeHD T-Adapters with or without the Reducer Lens
