| Mount Type: |
Computerized Equatorial |
| Instrument load capacity: |
55 lbs (25 kg) |
| Height adjustment range (includes mount and tripod): |
1200.15mm - 1968.5mm (47.25" - 77.5") |

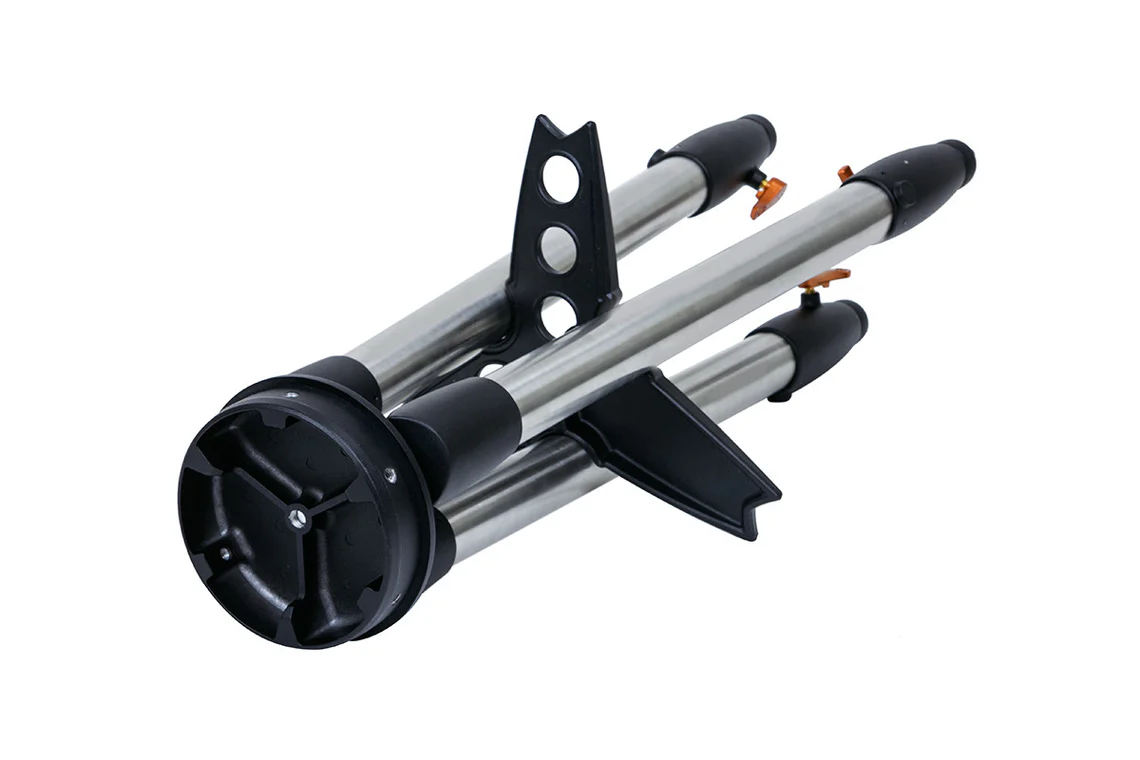

| Tripod Leg Diameter: |
50.8mm (2") Steel tripod with graduated markings on lower section |
| Latitude adjustment range: |
3° - 65° |

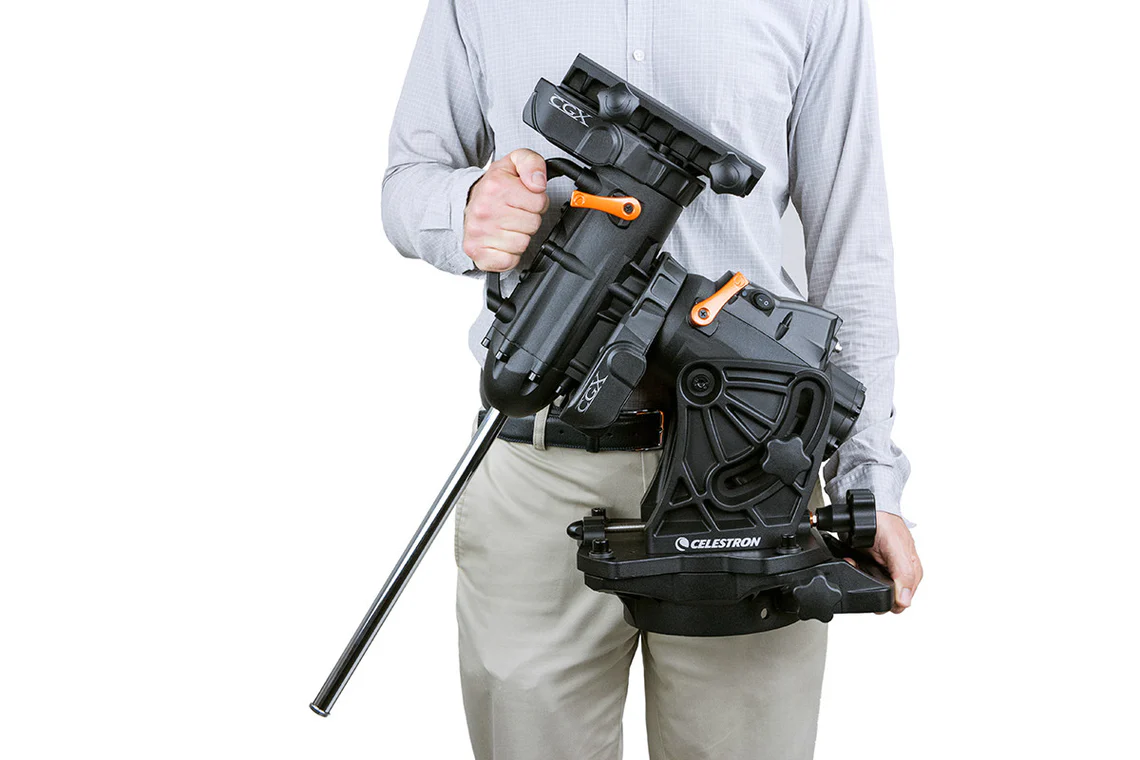

| Mount Head Weight: |
44 lbs (20 kg) |
| Accessory Tray: |
Yes |
| Tripod Weight: |
19.2 lbs (8.7 kg) |
| Weight of Counterweights: |
2 x 11 lbs |
| Slew Speeds: |
9 slew speeds - max speed 4°/second |
| Tracking Rates: |
Sidereal, Solar and Lunar |
| Tracking Modes: |
EQ North and EQ South |
| GPS: |
N/A |
| Dovetail Compatibility: |
Dual saddle plates (CG-5 and CGE saddle) |
| Number of Auxiliary Ports: |
2 AUX Ports (Hand Control can use either AUX Port) |
| Autoguide Port: |
Yes |
| USB Port: |
Yes, input for Mount and Hand Control |
| Power Requirements: |
12V DC, 4 amps |

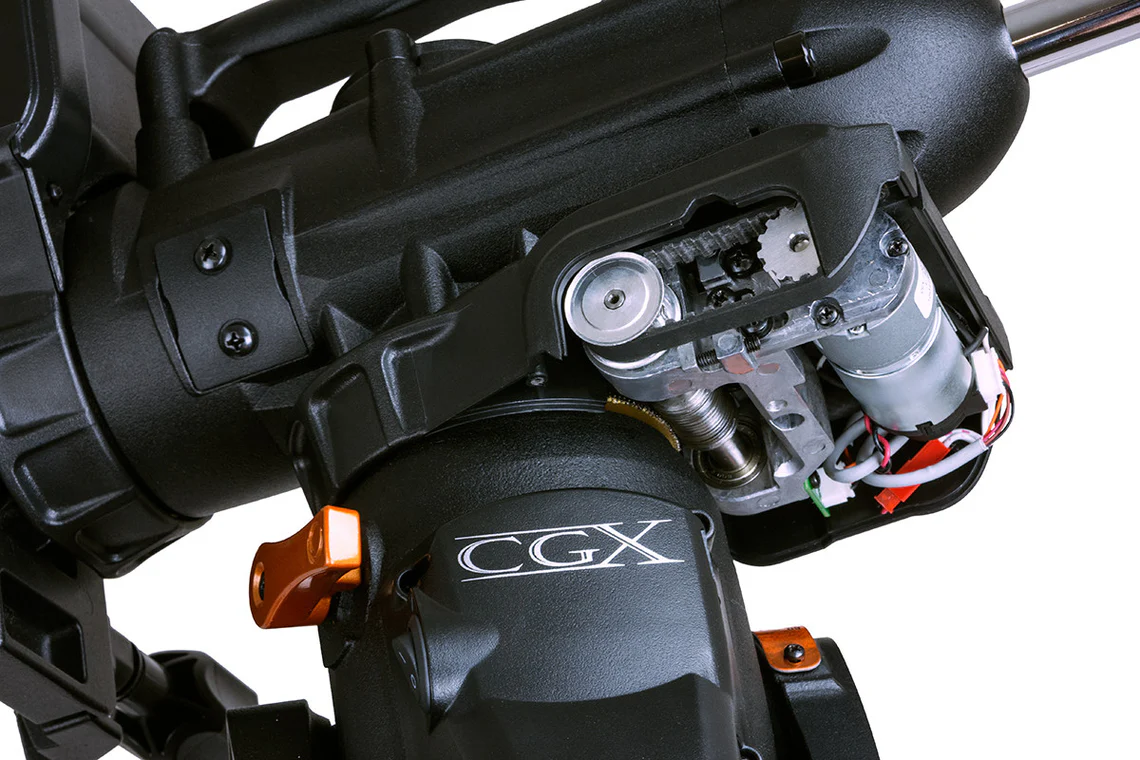

| Motor Drive: |
DC servo motors |
| Alignment Procedures: |
2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align |
| Periodic Error Correction: |
Yes |
| Computerized Hand Control: |
2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection |
| NexStar+ Database: |
40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Software: |
CPWI Telescope Control Software | Celestron Starry Night Special Edition Software | SkyPortal App |
| Total Kit Weight: |
85.2 (38.6 kg) |

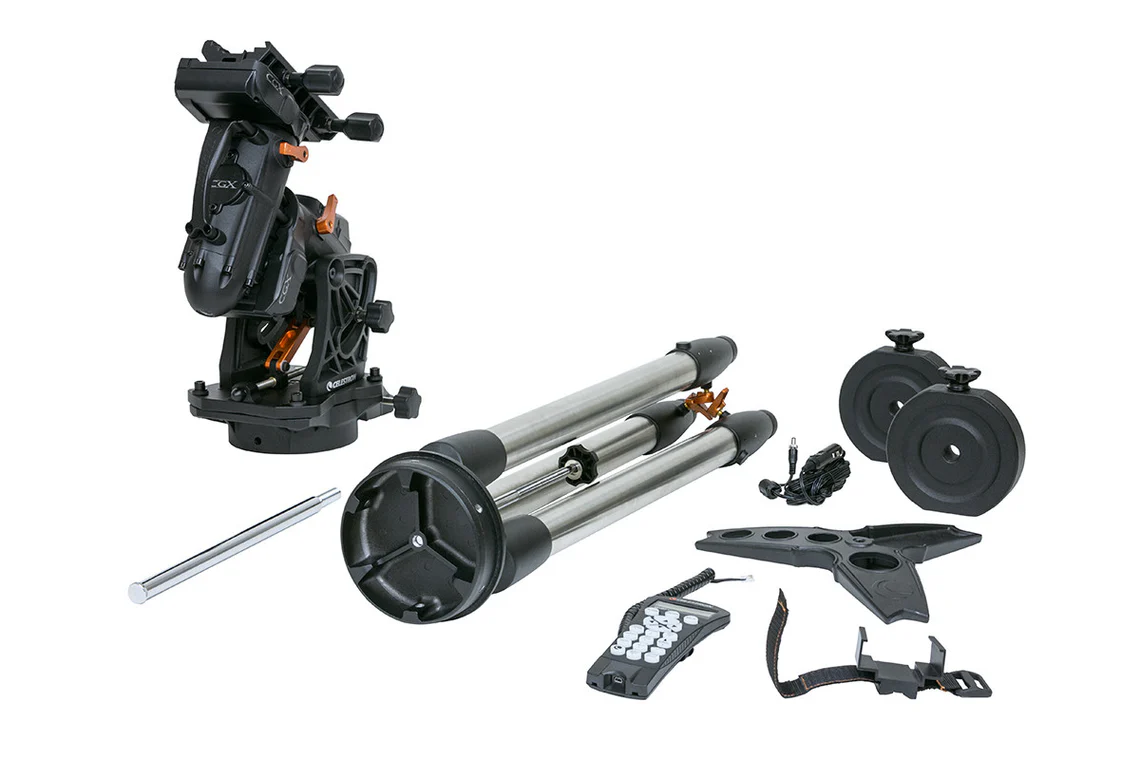

| Included Items: |
CGX Equatorial Head | CGX Tripod | Accessory Tray | 2 x 11 lbs counterweights | NexStar+ Hand Control | 8mm Allen Wrench | 12V DC Power Cable | Hand Control Holster |
