ASI120MINI

Camera Sensor

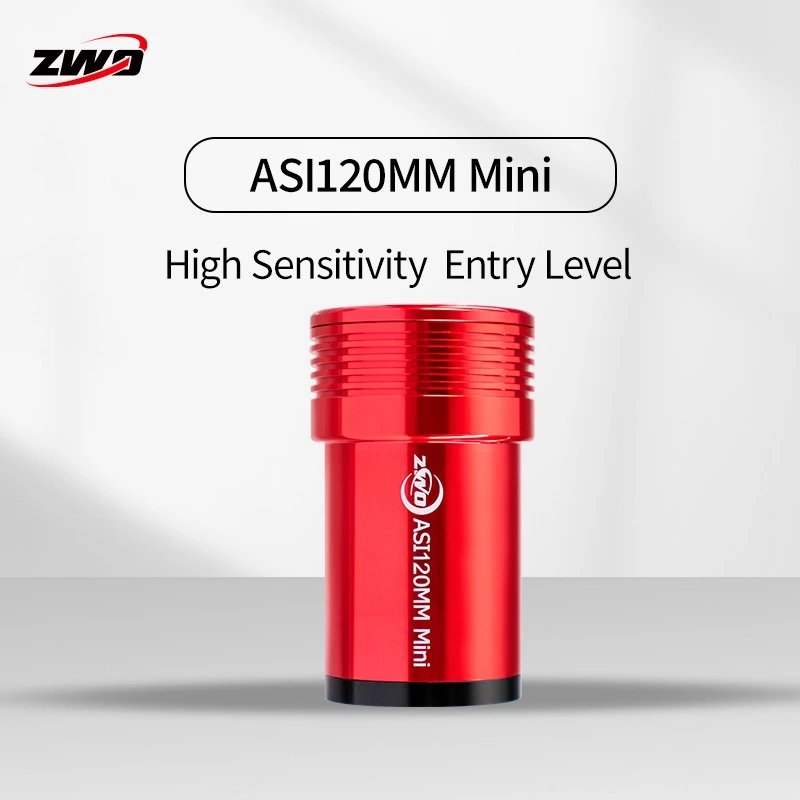

The ASI120MM Mini camera integrates the AR0130CS 1/3″ sensor (4.8 mm x 3.6 mm). It is a new model in the "mini”-series of cameras from ZWO. This camera has 1280 x 960 pixels with a pixel size of 3.75 μm x 3.75 μm. It provides 12-bit ADC and the QE peak is almost 80%.

Astrophotography Performance

The ASI120 mini-camera offers you very good performance for planetary imaging as well as for guiding. Low read noise, high dynamic range, AR protective window and much more are just some of the key characteristics that set it apart from the competition.

High QE

120Mini VS 120MM-S

Compared with the ASI120MM-S camera, the new 120-Mini has a sleeker design, less weight, and it can reach focus at the same position as an eyepiece.

USB2.0Port & ST4 Port

USB 2.0 Port: Mini camera has one USB2.0 type-C port. Type-C port is very popular in mobile phones, as it doesn’t matter which way you connect it (unlike for example type-A or type-B)

#USB-C to USB-A cable is required.

ST4 Port: The camera can be connected directly to the auto-guider port of the mount.

Connecting Drawing

1. M28.5-CS adapter
2. CS-C adapter
3. 1.25″ extender
4. 1.25″ filter

Mechanical Drawing

What is in the box?
