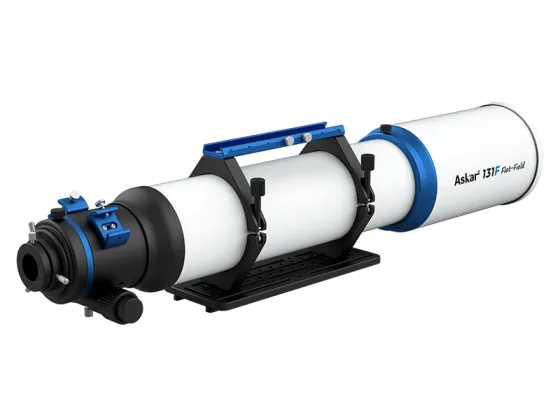

Askar 131F 自平場攝星鏡

Askar 131F 自平場攝星鏡

Askar 銳星光學
Askar & Sharpstar 銳星光學

AK-11063
新品
預訂

HK$ 15800


訂金 HK$ 1580


+ -

部分數量需訂貨,急用請先查貨期再付款。
Some quantities require ordering. Check lead time before payment if urgent.
圖片僅作供參考,並不代表產品實物及所包括配件。
Pictures shown are for illustration purpose only and may not be an exact representation of the product and accessories included.
  • 詳細內容

口徑131mm

131mm Aperture

焦距983mm

983mm Focal Length

4片式APO設計
Quadruplet Air-Spaced APO

ED玻璃
ED Glass

全畫幅對應
Supporting Full Frame

無需平場鏡
No Need for Flattener

無需計算後截距
拍攝即接即用

No Need to Calculate the Backfocus

可伸縮遮光罩
Retractable Lens Hood

360度旋轉器
Rotator

2個尋星鏡基座
2 Finder Bases

1:10微調精密
1:10 Fine Adjustment

3吋有齒 (R&P)調焦器
3" Large Rack- Pinion Focuser

1.25吋/2吋目鏡接口
1.25"/2" Visual Adapter

300mm寬型鳩尾板
300mm Losmandy Dovetail plate

攝影延長管
4-piece Photographic Adapters

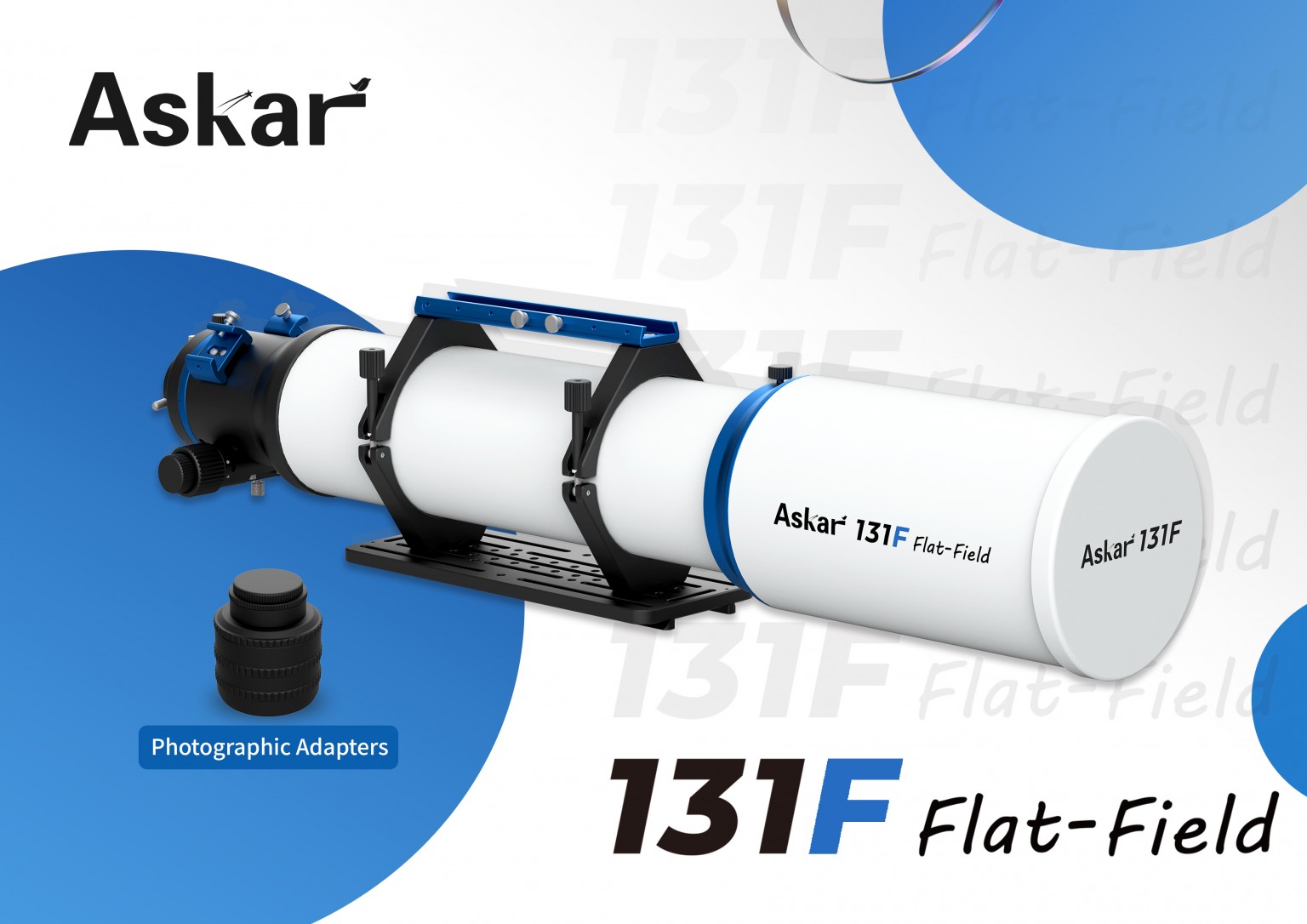

The Askar 131F is a large-aperture telescope designed for astronomy enthusiasts, featuring a 131mm aperture, 983mm focal length, and a native F7.5 focal ratio.



It employs a quadruplet optical lens design with three elements in the front and one in the rear, including one piece of  ED glass to effectively suppress chromatic aberration.

The lens tube incorporates an internal baffle to block stray light, further enhancing image quality. The Askar 131F supports full-frame imaging and delivers excellent star performance across the frame.

Continuing the F series' self-flattening design, users can achieve optimal imaging without purchasing an additional flattener or calculating back focus. Simply connect the imaging accessory, achieve focus, and you're ready to shoot—streamlining the process and lowering the barrier to use.





The telescope comes standard with a photographic extension tube featuring a built-in 2-inch filter thread and offers M48×0.75 and M54×0.75 adapters for broad compatibility with DSLR cameras and dedicated astronomy cameras, meeting diverse imaging needs.

Staying true to the brand philosophy, the Askar 131F balances optical performance with user experience. The lens tube is crafted with high-quality CNC machining and painted finish, continuing the F series' iconic blue-and-white color scheme for strong visual identity.

Whether for deep-sky imaging or visual observation, the Askar 131F is an ideal choice for advancing your astrophotography journey.

Specifications

Parameters
Aperture size 131mm
Focal length 983mm
Focal ratio f/7.5
Objective lens Quadruplet air-spaced APO(including one ED glass)
Image circle 44mm
Maximum accessory connection (with the focuser fully retreated) Imaging mode:
73mm (from the base of M48×0.75 male thread)
91mm(from the base of M54×0.75 male thread)
Observing mode:
131mm(from the end of 1.25" eyepiece holder)
141mm(from the end of 2" eyepiece holder)
Minimum accessory connection (with the focuser fully extended) Imaging mode:
43mm (from the base of M48×0.75 male thread)
61mm(from the base of M54×0.75 male thread)
Observing mode:
101mm(from the end of 1.25" eyepiece holder)
111mm(from the end of 2" eyepiece holder)
Total length 878mm(including 1.25" adapter as dew shield contracted)
963mm(including 1.25" adapter as dew shield fully stretched)
941mm(including the photographic adapter as dew shield contracted)
1026mm(including the photographic adapter as dew shield fully stretched)
Focuser travel length 30mm
Net weight 7.9kg
Gross weight (Including tube ring&dovetail plate) 9.4kg
Rear-end thread type M78×1-M54×0.75
M54×0.75-M54×0.75
M54×0.75-M48×0.75  (with M48×0.75 filter thread)
Standard package items  A 131F OTA,a pair of tube rings, a handle, a 300mm Losmandy dovetail plate,a set of photographic adapters



Product Size Diagram
Connection Diagram



The Locking Screw Position Diagram



Electronic Focuser Assembly Diagram



Optical Path Diagram



Spot Diagram
