ZWO New M54 Filter Drawer

ZWO New M54 Filter Drawer

ZWO 振旺光電
ZWO-62017
特價
現貨

HK$ 520


+ -

圖片僅作供參考,並不代表產品實物及所包括配件。
Pictures shown are for illustration purpose only and may not be an exact representation of the product and accessories included.
  • 詳細內容

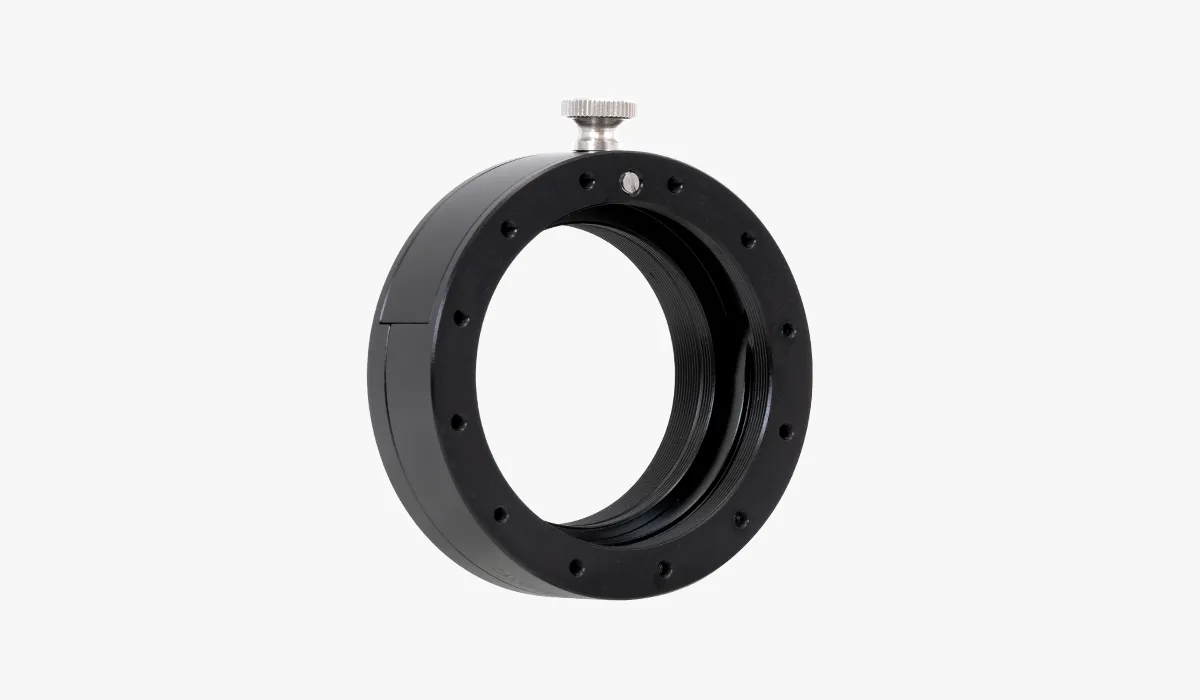

New 2″ filter drawer featuring the anti-light-leaking design that can effectively solve the light leaking issue under long exposure.

M54


Two sizes available: M42 and M54.

Double strong magnets adopted for stronger adsorption, easier installation and pulling out.

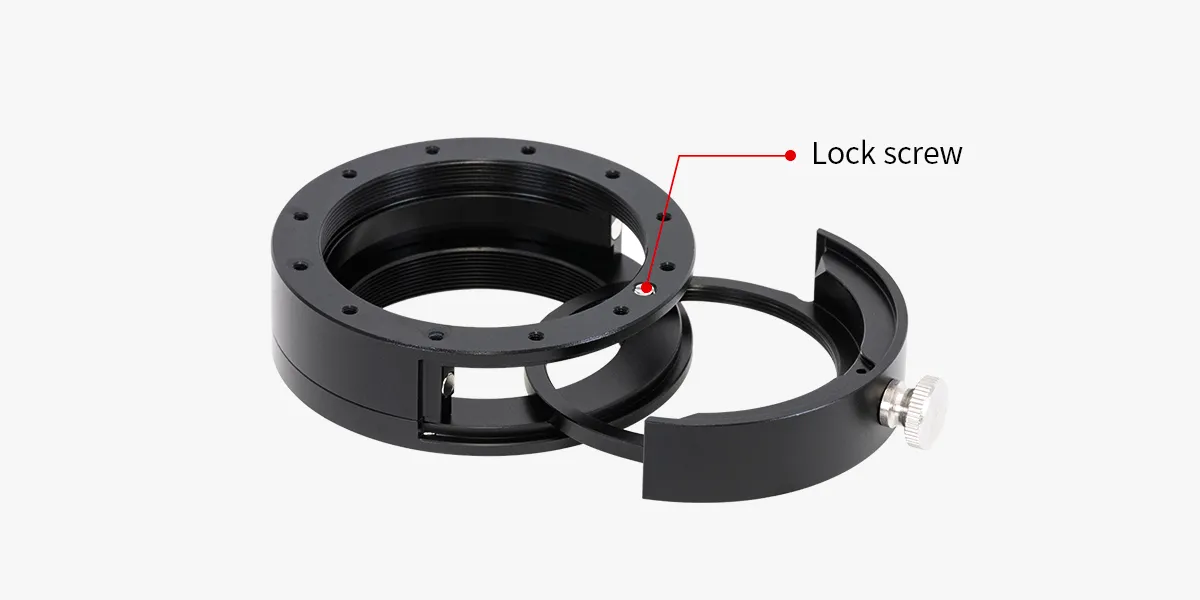

Lock screw on the side for you to adjust the tension of the holder to eliminate gap. Double insurance.



M54


Additional adapters are provided with the filter drawer for equipment connection.

The differences between the old and new filter drawer





Note: the old filter holder is not applicable to the new filter drawer. The new filter holder is not applicable to the old filter drawer.

In the Box

M54 filter drawer

                                                             Filter drawer *1M54-M48F-2mm *1





Mechanical Diagram

M54 filter drawer







Diameter 70mm * Thickness 20mm

M54 * 0.75 male (external) thread (camera side)

M48 * 0.75 female (internal) thread (filter end)

M54 * 0.75 female (internal) thread (telescope side)

Suitable for 2-inch astronomical filters and full frame cameras, such as ASI2600MC Duo, ASI6200 and ASI2400 series.
